Capabilities
One machine park for large, complex components
Heavy parts up to 85 tonnes – machined, measured and documented in-house. Explore Nordmark’s large-scale CNC machining capabilities, processes and equipment.
Technical capacity
Can Nordmark handle your component?
Large and complex components require more than available machine time. Size, geometry, weight, tolerances, measurement and documentation all affect the right production setup.
Nordmark’s capabilities help customers assess technical fit early in the project – before commitments are made.
Capabilities
Capabilities for demanding industrial components
Where size, geometry, tolerances and documentation raise the bar on both equipment and experience. Four core capabilities, one coordinated machine park.
CNC milling
Our large-scale CNC milling services support the machining and boring of complex steel and stainless steel components across long travels, with tight tolerance requirements.
Fermat WRF160H – 4
Floor-type boring mill for the largest, heaviest components.
- X 18,000 mm
- Y 8,500 mm
- Z 1,600 mm
- W 1,000 mm
Fermat WRF150 – 1
Long-travel floor boring mill for oversized workpieces.
- X 8,000 mm
- Y 5,000 mm
- Z 1,500 mm
- W 1,000 mm
Colgar PRG 415
Plano-milling for tall, heavy components.
- X 4,000 mm
- Y 4,500 mm
- Z 2,500 mm
- W 900 mm
CNC turning
Our large CNC turning services support the machining of heavy, large-diameter components where concentricity and repeatability are critical to performance.
Giana GGT5 Horizontal
Heavy-duty horizontal turning of large, long and complex components with high precision.
- Turning Ø 3,300 mm
- Turning Z 12,000 mm
- Chuck Ø 3,200 mm
- Load 60 t
Giana GGT2 Horizontal
Precision horizontal turning of large cylindrical components and shafts.
- Turning Ø 2,200 mm
- Turning Z 16,000 mm
- Chuck Ø 2,200 mm
- Load 40 t
Honor Seiki Vertical
High-precision vertical turning of large, heavy and complex components.
- Turning Ø 4,500 mm
- Turning Z 2,800 mm
- Chuck Ø 4,000 mm
- Load 25 t
Dörries Scharmann Vertical
Heavy-duty vertical turning and precision machining of large-diameter components.
- Turning Ø 2,400 mm
- Turning Z 1,800 mm
- Chuck Ø 2,000 mm
- Load 10 t

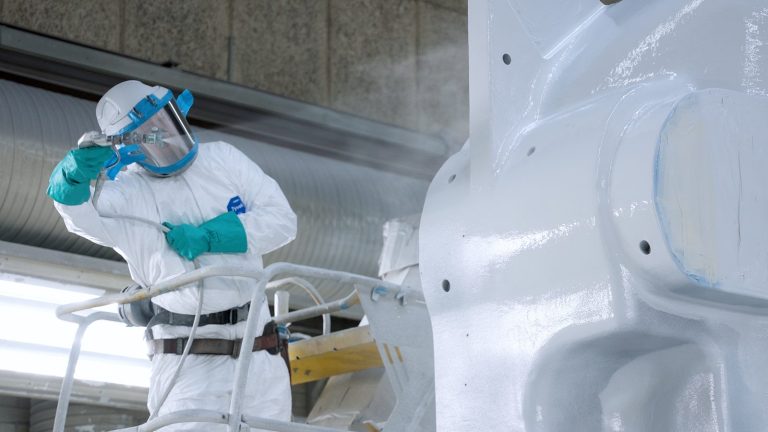

Surface treatment
Coating and finishing coordinated with machining and planned into the flow, so components leave protected and ready for assembly. We combine in-house preparation with a trusted network of treatment partners.
- Blasting and surface preparation
- Priming and painting to specification
- Corrosion protection systems
- Coating matched to machining tolerances
- Documented coating thickness and process
- Delivered ready for assembly
Quality
Measurement, inspection and documentation are built into production, not added at the end. Deviations are caught early, tolerances are verified against the drawing, and every component leaves with the documentation your team needs to sign it off with confidence.

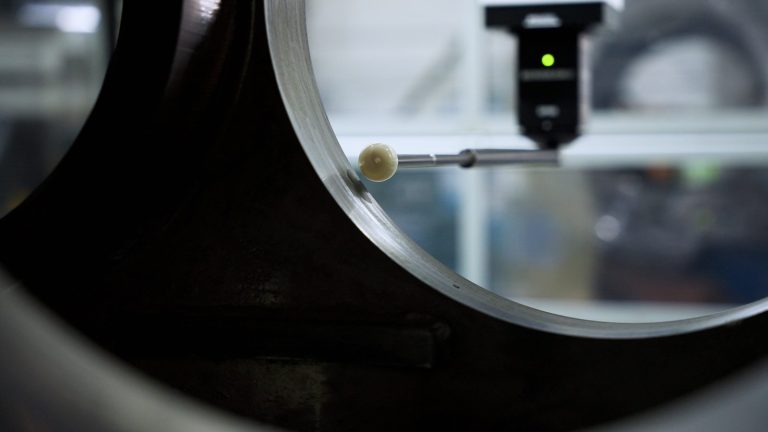

WENZEL CMM
Coordinate measuring for full dimensional inspection and reporting.
- X 4,000 mm
- Y 3,800 mm
- Z 2,000 mm
- Accuracy ±5 µm

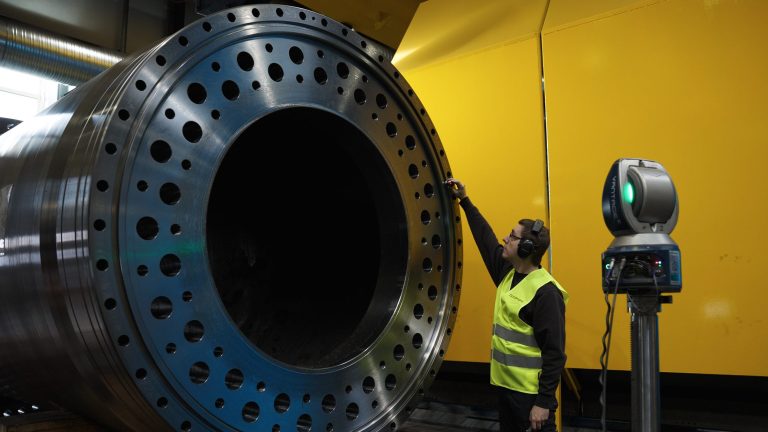

Laser tracker
Large-volume measurement and alignment across the floor.
- Range 80 m
- Accuracy ±15 µm
- Type Portable
- Use In-process
Surface & form testing
Roughness, hardness and geometry verified against the drawing.
- Roughness Ra / Rz
- Hardness HB / HV
- Form GD&T
- Output PDF report
APQP4WIND
Advanced Quality Planning
For wind industry projects, Nordmark offers APQP4Wind support upon request.
Structured quality planning, risk management and documentation help strengthen process reliability and transparency throughout manufacturing.
The full machine list
Every machine, working envelope and crane capacity in a single datasheet – ready to share with your engineering team.
